Variable-SPL amp from Maven Peal
An amplifier without the Sag Circuit is like a car with only one gear.

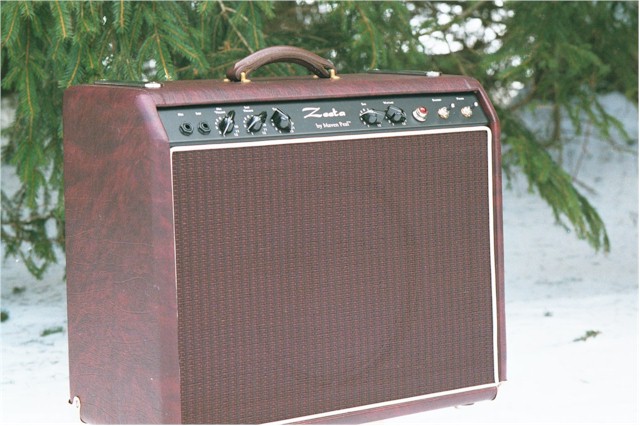

The Zeeta Amplifier
The Zeeta is an unprecedented 15 watt 1x12 combo. This maverick amp beautifully showcases 1960 Deluxe circuitry alongside the modern Sag Circuit design, introducing two new knobs, Sag control and Wattage control.
Sag Control allows you to control voltage sag, or power amp distortion. Lower amounts of sag give the amp a harder feel and brighter sound, while higher amounts of sag fatten up the sound and make the amp very responsive to your touch. In essence, you are getting a range of different amps all rolled into one very versatile package. This is the only amplifier that makes these claims from power amp, not from the preamp. The difference is organic and well, phenomenal.
Wattage control allows you to control the number of watts the power amp is capable of producing. This knob allows you to overdrive the power amp at whatever volume level is appropriate for the venue you are in. The Wattage control also allows you to adjust the mix between the level of power amp distortion and the level of speaker distortion.
This control is not a Master Volume control or any other preamp gimmick--but actual control over the power amp. Wattage control also allows you to adjust the mix between the level of power amp distortion and the level of speaker distortion. [this could very well be a built-in conventional power attenuator, after the output transformer -- or an approach like London Power's Power Scaling - Michael]
Additional Zeeta benefits include:
Infinite sustain, even at 2 watts
No power supply hum (essential for recording sessions and just plain easier on the ears). Freedom from varying wall voltages
High gain that cleans up nicely by backing off on guitar volume (and/or touch)
Alongside the Sag and Wattage controls, you'll find a signal path similar to a three knob tweed Deluxe with two inputs, two volume controls and one tone control.
This amp boasts the following production features:
Celestion Blue Alnico speaker (rated #1 in the August 1999 issue of Guitar Player)
$3,950 includes flight case
news release at Harmony Central
newsgroup postings about zeeta
Lord Valve Speaketh:
I finally found time to sit down with Dave Zimmerman's Maven Peal "Zeeta" amp today. Most of the regulars here know Dave as the designer of the Maven Peal Sag Circuit, a sandy little number that emulates rectifier tube sag (and then some) as well as provides power scaling for the output stage of a tube amp. An interesting side effect is that it makes for a *totally* hum-free DC supply. (I consider this to be more useful than the "sag" feature, but WTF do *I* know...I'm an organist. ;-) This article is going to deal mainly with the construction, circuitry, and physical appearance of the amp, rather than the tone and playability. I'll do a post on how it sounds later, when I can get opinions from five or six local guitar pickers, one of whom is my assistant technician. (Scooter Barnes, who, as soon as he figures out he ain't gettin' paid by the note, will be one of the finest pickers on the planet.)
FIRST IMPRESSIONS
The Zeeta comes with its own high-quality roadcase;
it was delivered (upside-down, I might add...you'd
figure the fact that the handles will kill the shit
outta your hands in this position mighta given the
delivery driver *some* kind of a clue) by FedEx
in early December. I was swamped with the usual
Christmas retail crap, so, after we played it for
5 minutes to make sure it wasn't DOA, we just put
it back into the case and let it rot until today.
When we gave it the initial checkout, we discovered
that the mike input was *way* noisy...probably a
bad tube, I thought. I called Dave up and gave
him the low-down, and he said he was sending us
an upgraded mil-spec ceramic-body IC to install
in place of the consumer-grade part that was
currently in the power supply. (He knew I was
going to take his baby apart and lick all the pieces,
so why not upgrade...right?) At any rate, the Zeeta
impressed us (me and Scooter and Lady Valve) as a
really solid-looking piece of gear. Pretty, too.
THE CABINET
Absolutely gorgeous. You don't see joinery like this
every day. The wood is cabinet-grade clear pine; the
cabinet is covered with a lightly textured maroon Tolex.
One thing I noticed about the amp right away was the
care with which the Tolex was applied...it looked like
it was done by someone who was not only really damn
good at it, but enjoyed the hell out of doing it. (This
was confirmed in a call I made to Dave tonight...he said
the dude who does the covering only does Ferraris and
Lotuses. And the Zeeta, evidently.) All the joints on
the Tolex are dead solid perfect. Better than anything
I've seen before by an order of magnitude. Really. The
box itself is radiused throughout; the back panels are
*thick* wood...5/8" at least, radiused, and and even
the ends (which you cannot see without removing the
backs) are Tolexed perfectly. Never seen anything like
it. All the fasteners are stainless steel. Speaking of
stainless steel, the chassis straps on top of the amp
(like a Fender has) are machined from solid stainless
steel, 3/16" thick. An inch wide, they weigh nearly a
POUND each! The chassis bolts are Phillips-drive stainless
1/4-20; if this amp falls on its face, they are *not*
going to bend, period. The grille cloth is maroon also,
with tasty white piping around the edge. The handle is a
black English leather type from Penn Fabrication referred
to as a "dog-bone". On the bottom are a set of *huge* rubber
feet. Regulation Fender-type corners, two-legged with
turned-in lips. The corners appear to be the only hardware
on the amp that's not custom built. The speaker is a blue-
basket Celestion Alnico 12" "bulldog" type. It's hooked to
the amp with a piece of 12-gauge audiowanker OFC speaker
cable (why not?) that has been covered with a piece of
sky-blue heatshrink. The plug is an old-fashioned squarish
Switchcraft plastic-backed right-angle type; I'd have preferred
to see the more modern (and considerably more rugged) part #228
from the same company. The inside of the top part of the cabinet
is covered with overlapping strips of copper shielding tape
which, according to Dave, are stuck to each other (and to the
cabinet) with conductive adhesive. The shielding goes down the
sides of the cabinet as well as covering the inside of the top;
this is because the chassis, which is bent from a single piece
metal, is open at the ends.
UNDER THE HOOD
I took the chassis out; no surprises, it slid right out without
binding on anything. I couldn't believe what I was looking at.
The damn thing is *literally* built like a tank. The chassis
is bent from a single piece of *very* stout aluminum...a full
*eighth* of an inch thick! It makes a BF Fender chassis look
like tin-foil. I could just barely flex it, and I had to strain
like hell to produce even the slight flex I was able to achieve.
(I ain't exactly small, and I *do* eat my Wheaties.) The control
surface is slanted like a BF Fender...my favorite design. Looks
cool, and makes the controls easy to see and adjust. It's black
(anodized, I suppose, although I really didn't look at the finish
that closely) with white lettering. Black chicken-heads on the
pots. Two inputs, one for a mike and one for an instrument.
Power switch, standby switch, and a Fender-type red pilot light.
The circuit is nearly identical to a Tweed Deluxe. (With the
exception of the power supply, of course.) Mike vol, Instrument
vol, Tone, Sag, and Power are the controls. The "sag" control
lets you dial in the amount of power-supply sag you like, while
the "power" control lets you adjust the actual output power of
the amp between one and fifteen watts. Inside the chassis was
the single best set of parts I have ever seen, period. Central
to and dominating the audio-circuitry layout is the cathode
bypass cap for the output tubes. (2 X JJ/Tesla EL-84.) It's
a *monsterous* 270uF/250V poly cap, the size of a soup can. A
little larger than a soup can, in fact. The bypass caps for the
preamp are huge, too...24uF/250V, same type, from the same French
manufacturer. The coupling and tone caps are all audiowanker
types. The preamp plate load resistors are three-watt metal
composition parts. Are you starting to get the impression that
the Zeeta is overbuilt? Read on... The audio portion of the
Zeeta is all handwired, point-to-point. The resistors and caps
and whatnot are mounted on a custom-built L-shaped turret board,
made of mil-spec fiberglass an eighth of an inch thick. Numerous
support points are provided for this board, to keep it stiff.
Every bolt or machine screw that needs a nut on it has an
aircraft-style nylon insert vibration-proof type installed. The
power tranny is a large toroid type, mechanically isolated from
the chassis to reduce mechanical hum. The OPT is mounted on 1/4"
standoffs; I asked Dave about this, since I wasn't sure what good
that would do (if any) and the answer was "Because it looks cool."
It does, in fact, look cool. Jacks are the ReAn or Cliff's nylon
type, with gold-plated contacts. The audio pots are from CTS,
while the Sag and Power controls are Clarostat RV-4 conductive
plastic types. All the internal wiring (with the exception of
the transformer leads and the shielded cables that go to the first
preamp tube) is Teflon-insulated sliverplated OFC. Good stuff;
my own personal favorite, in fact. (Sorry, I think cloth-covered
wire is crap. Sue me.) Tube sockets are ceramic. The two 12AX7
preamp tubes are the LP variety from Sovtek; Dave and I discussed
trying the new EH variety (no, they are *not* the same thing as
the LPS, although they were for awhile...see my description of
the new 12AX7EH on another thread) when my batch of 250 shows
up and I get done tossing out the clunkers. The Zeeta runs DC
heaters, even for the power tubes. Well-regulated, too. The
power tubes have their filaments wired in series (the DC filament
supply is 12.6 volts) so that if one dies, the other shuts off
too. A word about the soldering in this particualr unit...it
was crummy. I reamed Dave about this on the phone; he told
me that chassis was a prototype, wired by someone who no longer
works for him, and modified and updated multiple times. (The
serial number is 0010.) I found the tip shunt ground wire on
the mike input jack was not soldered at all, and I also redid
some of the connections on the tube sockets. (One nice thing
about Teflon wire is that you can resolder it a jillion times
and it still looks brand new.) I also had to re-solder and
re-dress the shielded leads to the #1 preamp socket, as they
were done completely wrong. (Whoever did 'em neglected to
remove the conductive plastic electrostatic shielding from
the center conductors, causing several high-impedance shorts
both on the socket and under the turret board at their other
ends.) Dave assures me that the currently-produced Zeetas
are much neater inside. I should hope so. On to the power
supply...LOTS of sand here, all over the place. Mosfets,
ICs, regulators, you know...SAND. All topnotch, too. The
Molex connectors used for the various inputs/outputs to and
from the board were of a type I haven't seen before...special
high-voltage connectors, which are insulated all the way to
the bottom of each individual pin. Tight-fitting, too...
three or four cuts above the cheapshit ones you see inside
most MI gear. If I ever get around to building some of my
amps, I'm gonna use those for sure. The power board is a
conventional SS-type PCB, also very thick (but not as thick
as the turret board in the preamp) mil-spec fiberglass,
double-sided and plated-through-hole. I can't comment on
how it works, because I don't know. (No schematic...Dave?)
Dave's patents are somewhere online, I think.
Once I was done eyeballing all the guts, I gave the chassis my Hammer Test. I take a 2-pound Stanley shot-filled Deadblow hammer and whack the crap out of 'em; if anything is rattly, it's gonna show up when I do this. I couldn't believe it... it was like whacking a piece of concrete. No rattle at all... nothing. Nil point zippity-shit. The only thing I could hear on first whack was the cage nuts rattling in their clips; I put bolts in them and tightened them all the way down (like they would be when the chassis was in the cabinet) and after that it was like whacking a piece of lead. The Zeeta is the single most rattle-free combo amp I have ever encountered. (Contrast this with, say, the Mesa Heartbreaker, which rattles like a beer can fulla buckshot.) All combo amps should be built like this, and would, if it wasn't for...
SHOW ME DA MONEY!
Egad, FOUR GRAND! That's a *lotta* scratch. I know why it's
so much, though, after eyeballing the parts. The output stage
cathode bypass cap costs a hundred bucks by itself. OUCH!
There are a lot of hand-machined parts in the Zeeta; some of
them wouldn't be much cheaper even in production quantities.
The amp does come with a top-quality roadcase, too. (I've had
cases like that made for some of my customers, and they run in
the $500-$600 range.) Once I figured out the approximate cost
of all the stuff that goes into a Zeeta, it was apparent that
Mr. Zimmerman ain't gettin' rich off em, at least, not in a
hurry. This amp is a Rolls Royce, and there are certainly
people who will pay for this type of construction. (Neil
Young bought one, for instance.) I can't wait to hear some
smokin' guitarists put it through its paces...stay tuned.
Dr. Nuketopia gets this amp next; we'll see if his take on
it mirrors mine. Mine is: it's the best-built guitar amp
I've ever seen...and rumor has it that I've seen more than
a few. ;-)
Lord Valve
VISIT MY WEBSITE:
NBS Electronics, 230 South Broadway, Denver, CO 80209-1510
[end of LV's review from AGA]
